It is a multipurpose, two component, room temperature curing, adhesive of high strength and toughness. It is suitable for bonding a wide variety of metals, ceramics, glass, rubber, rigid plastics and most other materials in common use. It is a versatile adhesive for the craftsman as well as most industrial applications.

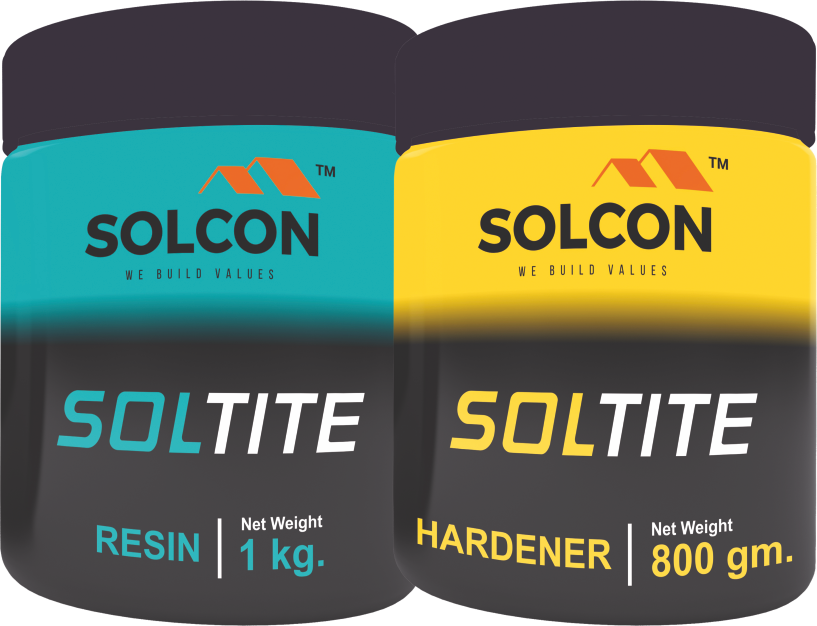

SOLTITE RESIN
| Description | Visual | Clear transparent liquid |
| Colour | ASTM D 1544 | MAX 1 G |
| Viscosity @25°C | ASTM D 2196-05 | 25000 – 35000 |
| Density @25°C | ASTM 1475-98 | 1.01 – 1.1 |
SOLTITE HARDENER
| Description | Visual | Greyish black paste |
| Colour | ASTM D 1544 | Max 8 |
| Viscosity @25°C | ASTM D 2196-05 | 25000 – 35000 |
| Density @25°C | ASTM 1475-98 | 0.92 – 0.98 |
PROCESS PARAMETERS
| Mixing ratio resin : hardener | W/W | 100 : 80 |
| Pot life | Minutes | 35 – 45 |
| Mix viscosity @25°C | ASTM D 2196-05 | 25000 – 35000 |
| Surface dry of thin film @25°C | Minutes | 60 – 90 |
| Touch dry of thin film @25°C | Minutes | 150 – 180 |
| Hard dry of Thin film @25°C | Minutes | 250 – 400 |
| Tensile shear strength, after 24 hours @27°C | Kg/Sq.cm | 90 – 120 |
| Contain | |||
|---|---|---|---|
| Particulars | 450 gm | 900 gm | 1.8 kg |
| Resin | 250gm | 500gm | 1 kg |
| Hardner | 200gm | 400gm | 0.8 kg |
